$Recycle.Bin Forensics: Analysis of $I (metadata file) and $R (actual content)



Forensic Insight into Windows 10 $Recycle.Bin

In Windows 10, the deleted files are temporarily located in "C:\$Recycle.Bin>", a sub directory under root directory. The completion of file deletion process yields two separate files placed within the $Recycle.Bin path, as follows:

• $I – Contains metadata specific to the deleted file (original file name path, file size, deletion timestamp, file name size and, file name).

• $R – Contains the actual contents of the file.

The two files ($I and $R) corresponding to the deleted file are named/suffixed with a random six character value after $I and $R, resulting into a 8–character file name.

The system creates SID based folders corresponding to each user account. In the SID sub-folder, you will find the SID of the user who deleted the file. Each time a user deletes a file from the Recycle Bin, a sub-folder is created for them. As per the requirement an analyst can analyse the contents inside the SID sub-folders.

Let’s have an example :

Step 1 :

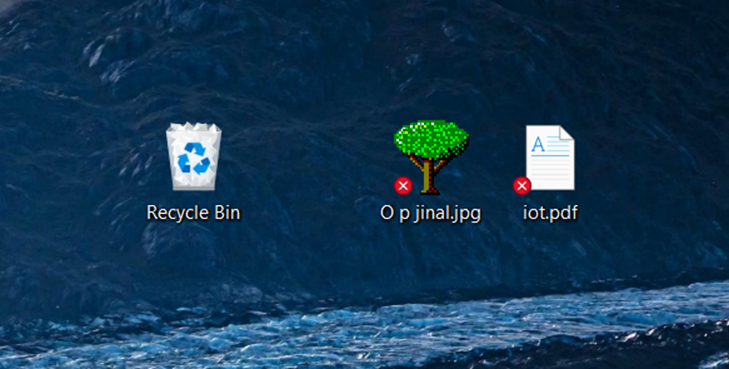

Below there are 2 files , a .pdf & .jpg file. We are going to delete both these files and again delete these files from the recycle bin also, since we need to recover these files.

Step 2 :

Now open the command prompt and run as administrator.

To view the hidden files type dir /a and then we can see the $Recycle.Bin folder on the second line.

Step 3 :

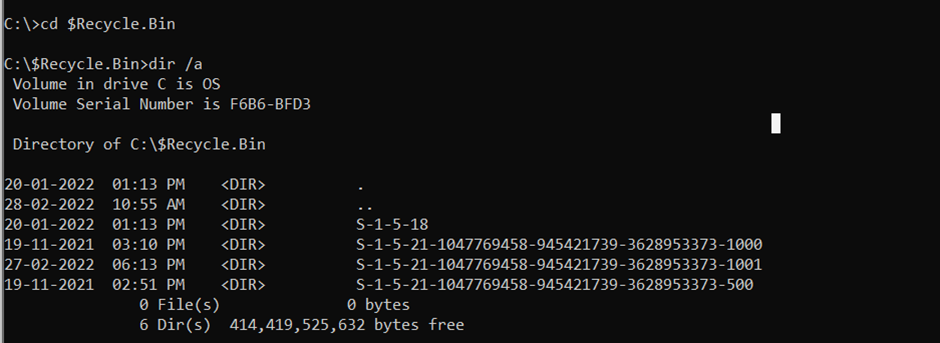

Now change the directory to $Recycle.Bin by typing “cd $Recycle.Bin” and to see files under the Recycle Bin directory type “dir /a”. The SID folders are illustrated below.

Step 4 :

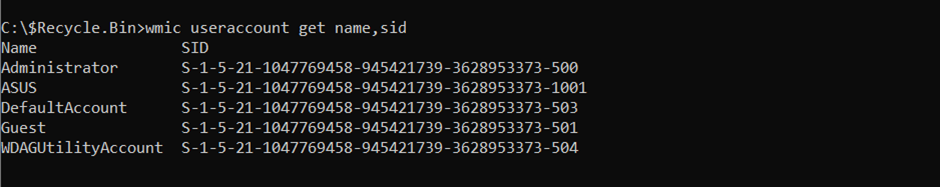

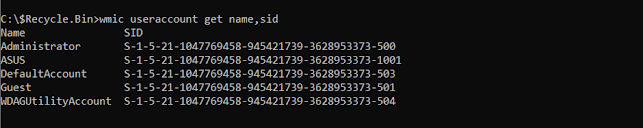

In order to determine the SID's username and other associated SID’s the following command can be used:

wmic useraccount get name,sid

Now I’m currently logged in as ASUS (my user account), so it is the folder in which my recycle bin activities are stored. Here, "S-1-5-21-1047769458-955421739-3628953373-1001" is associated with user account named ASUS.

Step 5 :

Let’s get into the SID folder by entering the below command:

                        cd S-1-5-21-1047769458-955421739-3628953373-1001

As we want recover the files that was deleted on 27-02-2022, so we can see that there are two $I files containing the meta data details & two $R file containing the actual content of the file.

Step 6 :

Now we can copy the $R and $I file to a recovery folder by using copy command as show below:

Syntax :     copy  “$R file name”  “ recovery folder location”



                   copy  “$I file name”  “ recovery folder location”

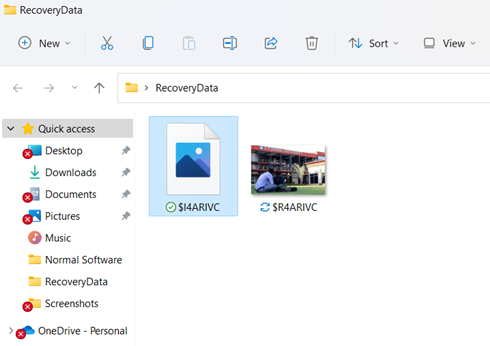

Now we can see that the $I and $R files are recovered/copied in the RecoveryData folder.

Step 7 :

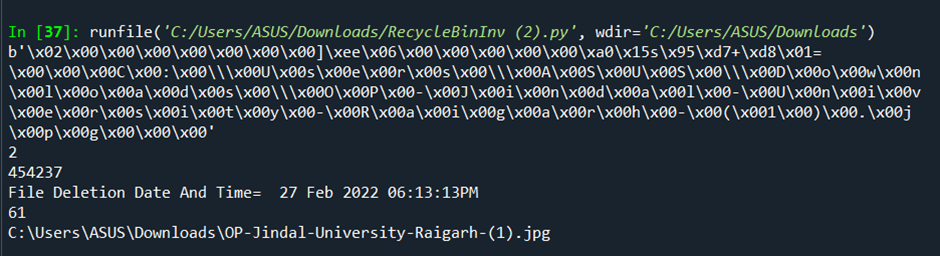

The following custom developed python code may be used to recover the meta data of the files that were deleted i.e., $I file. The $I file hold the following data structure, which can be followed for the extraction of such crucial information.

The Python code is provided below for the better understanding and smooth implementation.

import struct

import datetime

fileobj = open("C:\\Users\\ASUS\\OneDrive\\Desktop\\RecoveryData\\$I4ARIVC.jpg","rb")

data=fileobj.read()

print(data)



def FromFileTime(filetime):

    if filetime<0:

        return None

    timestamp = filetime / 10



    time1=datetime.timedelta(microseconds=timestamp)

    date_time = datetime.datetime(1601,1,1) + time1

    date_time=date_time+datetime.timedelta(minutes=330)

    return date_time.strftime('%d %b %Y %I:%M:%S%p')



header = struct.unpack("<Q",data[0:8])

print(header[0]) #Header  (8 Bytes)

filesize = struct.unpack("<Q",data[8:16])

print(filesize[0]) #File size     (8 Bytes)

 deletion_time = struct.unpack("<Q",data[16:24])

# Time (8-Bytes)

#print(deletion_time)

print("File Deletion Date And Time= ",FromFileTime(deletion_time[0]))

name_length = struct.unpack("<L",data[24:28])

print(name_length[0]) # Filename Length or Length of the Filename  (4 Bytes)

 filename = data[28:28+2*name_length[0]].decode('utf-16')

print(filename) # Filename. The size is variable

So now we recovered the file both the Actual contents and the Meta data of the file.

Hence these were few simple steps that can be used to recover the deleted files from a $Recycle.Bin.

We hope that this blog post might be very useful to you.

Contributors:

1. Mr. Aman Pandey, B.Tech. CSE 6th Semester, OP Jindal University Raigarh, CG, India

2. Dr. Nitesh K Bharadwaj, Assistant Professor, Deptt. of CSE, OP Jindal University, Raigarh, CG, India.

3. Dr. Bhupendra Singh, Assistant Professor, Deptt. of CSE, IIIT Pune, Pune, MH, India
